X5
X51
X52
X53

X5

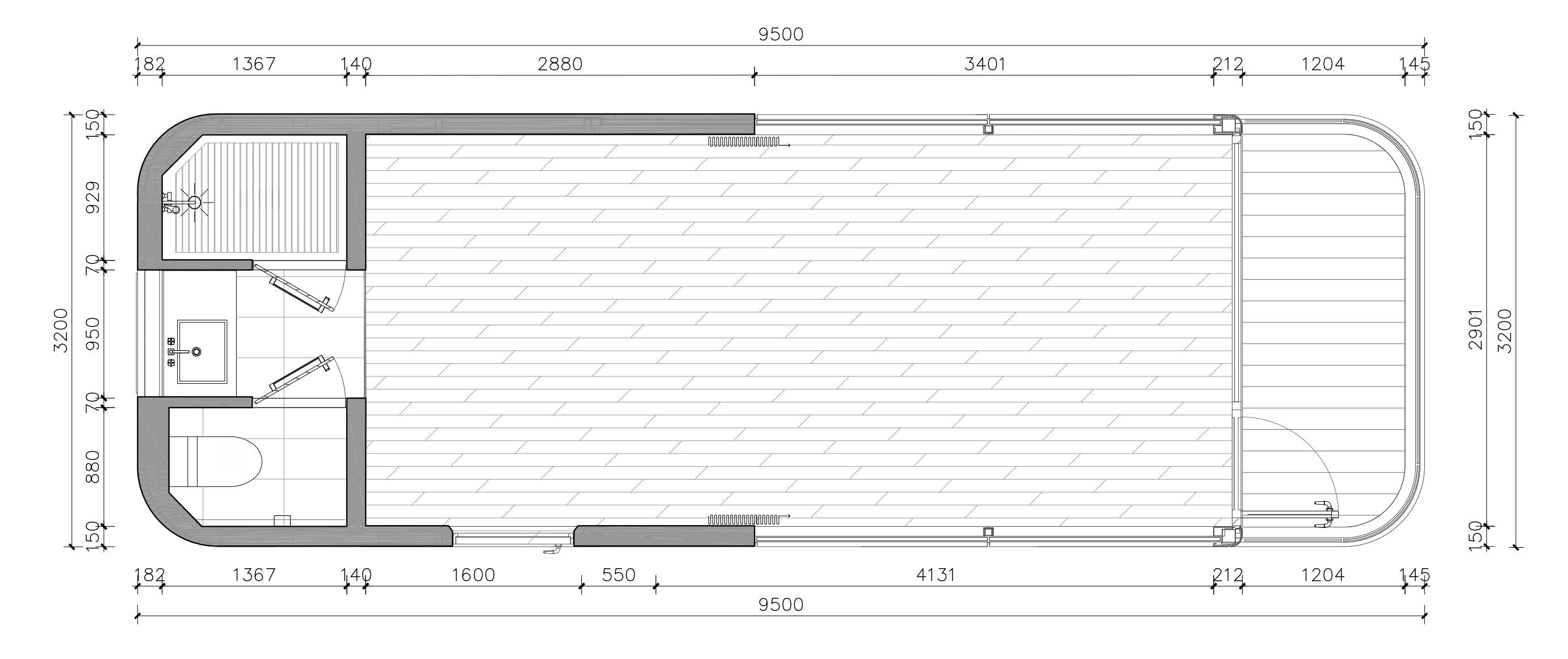

  • L*W*H: 9.5*3.3*3.2 M
  • Area Covered: 30.4 M²
  • No.of Guests: 2 Persons
  • Power Consumption: 6.7 KW / 11.2 KW (with Floor Heating)
  • Total Net Weight: ≈ 6.5T

Product Details

Unrestricted Terrain Ecological Development



The space capsule products are widely used in a variety of outdoor sites, such as snow mountains, deserts, coasts, hills, grasslands, mudflat and other environments. They are not limited by the terrain. The installation process is green and environmentally friendly, without damaging the foundation and ecology, and can achieve all terrain coverage. The product is fully integrated throughout the house and transported as a whole, without the need for on-site construction or decoration, and does not generate any construction waste. It is easy to move in immediately after connecting water and electricity.



Product Analysis

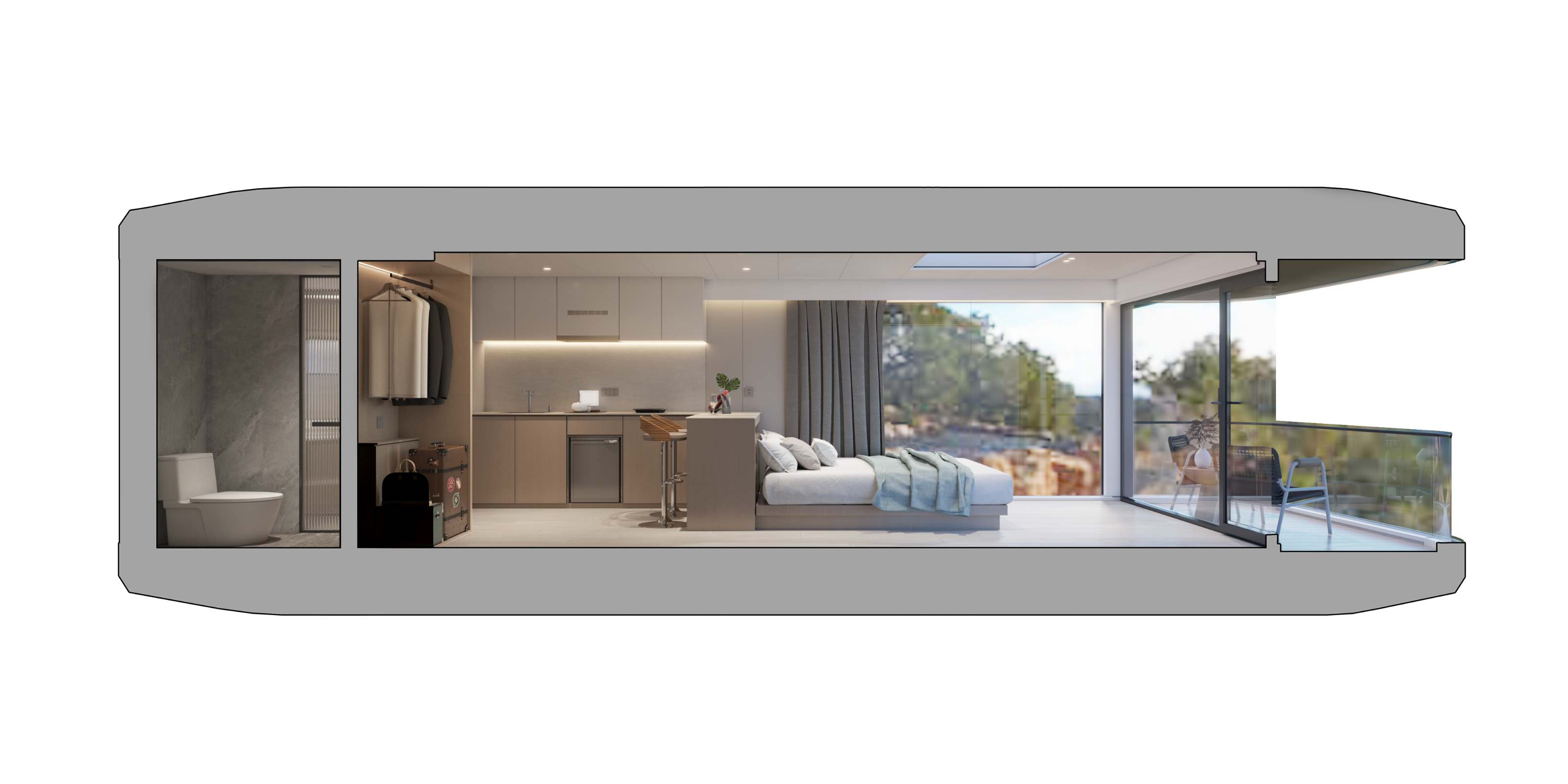

  • Modern minimalist style, equipped with smart appliances throughout the house, with a layout of one bedroom, one living room, one kitchen, and one bathroom.
  • The body is made of fluorocarbon process aluminum alloy, which is moisture-proof, anti-corrosion, rust resistant, earthquake resistant, and windproof.
  • The overall structure is made of seismic resistant steel, with bottom screws fixed for seismic resistance of level 9. The entire warehouse can withstand level 12 typhoons, making it sturdy and durable.
  • Wall covering with thermal insulation materials effectively reduces the impact of temperature changes.
  • The main frame is independently developed by travelers and adopts a hot-dip galvanized steel structure, which is sturdy and durable for more than 50 years.
  • Ecological and environmentally friendly, complete and dismantled without destroying any plants or trees.
  • Equipped with foot support, not limited by terrain, deep into the hinterland of the scenic area.
  • L type french window adopts new building material, double-layer hollow low-e glass, which has excellent heat insulation performance and high light transmittance, heat insulation and sound insulation.

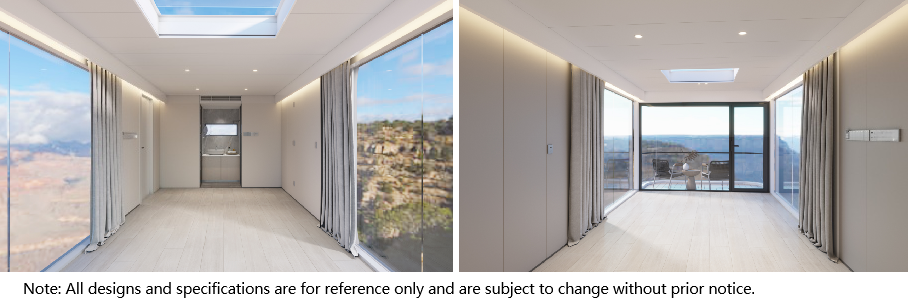

Renovation Effect









Specifications



Name

Space Capsule X5

Size L*W*H

9.5*3.3*3.2 M

Area Covered

30.4 M2

No.of Guests

2 Persons

Power Consumption

6.7 KW / 11.2 KW (with Floor Heating)

Total Net Weight

≈ 6.5T

Casing Outside the Material

Main frame: Galvanized steel structural frame;

Shell: Fluorocarbon paint sprayed aviation aluminum alloy aluminum veneer;

Insulation: 50-100cm polyurethane foam;

Glass wall: Hollow Low-E tempered glass;

Skylight intelligent (remote control): Transparent LOW-E laminated tempered glass;

Balcony glass: aluminum alloy profile edging;

Entrance door: Stainless steel thermal insulation door;

Entry lock: Hotel intelligent access control;

Baseboard: The bottom is sealed with 3mm thick outdoor aluminum plastic plate;

Customer Control System

Lighting/Electric Curtains;

Hotel intelligent access control;

Indoor Decoration

Standard color blackout curtains;

Standard ceiling/wall module/stone crystal wood grain floor;

Bathroom privacy glass door;

Bathroom shower room/marble/tile floor;

Washbasin/sink/bathroom mirror;

Hanging clothes hook/shower storage rack/towel rack;

Faucet/flower wine/floor drain;

Whole house lighting system;

Whole house water and electricity system;
Cold and hot air conditioning; Electric water heater; Fresh air system;

Mosquito and insect screen doors and windows;

Lighting ventilation fan;

Brand close stool;

Optional configuration (additional cost required)

Insulation upgrade:

a) Electric auxiliary heating system for water supply pipes;

b) Thickened insulation layer;

c) Electric floor heating;

d) Three-layer hollow Low-E tempered glass;

e) UV-proof heat-insulating and explosion-proof film (high transparency/privacy);

2. Comfort upgrade: Projector; Intelligent voice control; Customized bar counter;

Customized Wardrobe;

3. International kitchen customization:

a) Cabinet/wall cabinet (sink/faucet);

b) Range hood/Induction cooker/Refrigerator;

4. Accessories and peripherals:

a) Entrance stairs; b) Triangular V support; c) Entrance platform;



Package & Shipping



1.Factory Shipping

After the products are packaged, they are transported by large flatbed trucks. Strict safety protection measures will be taken when products are transported from the factory to the camp to ensure safety and stability during transportation.

2.Product Hoisting

After the transport truck arrives at the local area, it needs to be hoisted and lowered usina a larae crane. After the Space Capsule arrives at the project site, the corresponding lifting equipment, lifting position and tonnage data should be provided based on the actual conditions on site.
